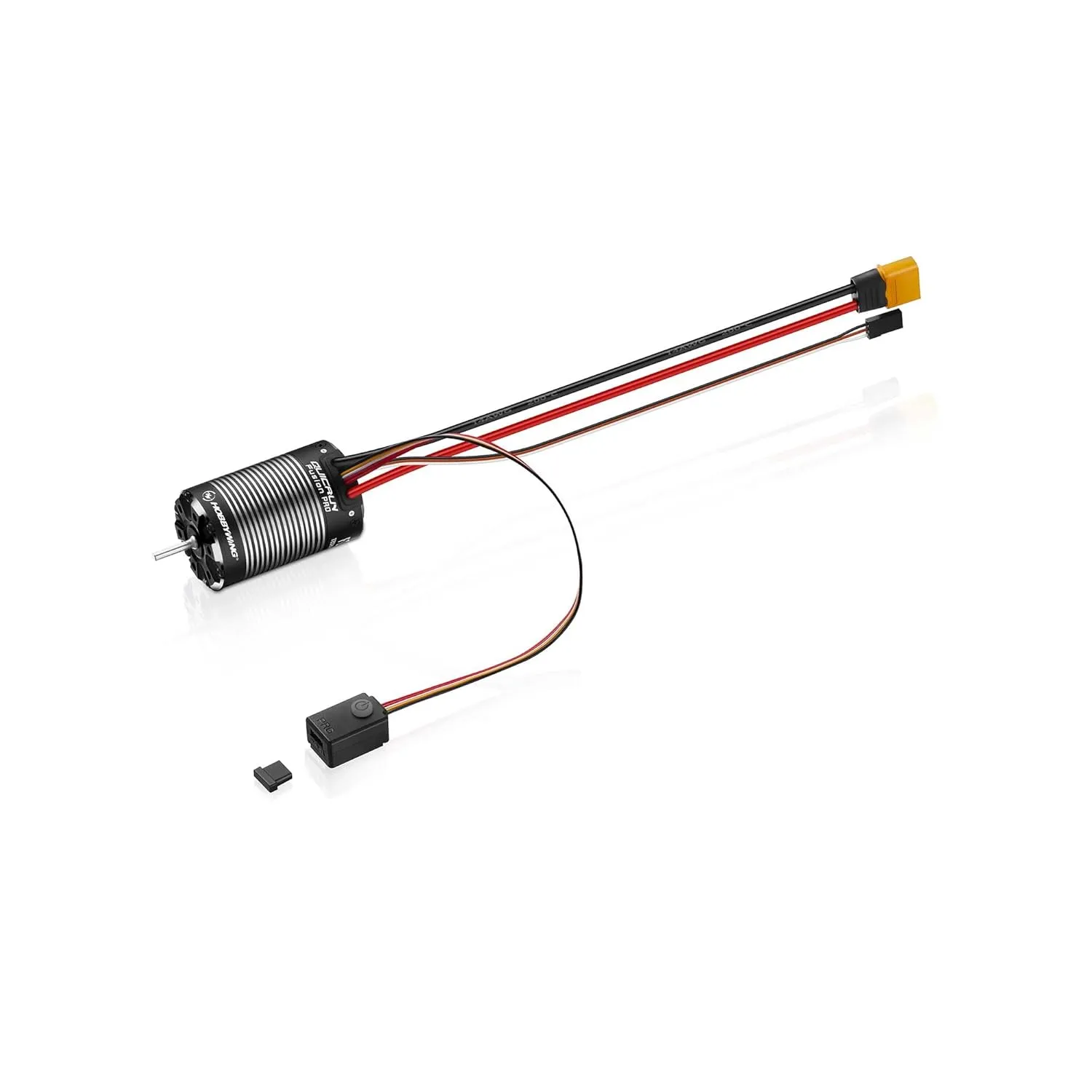

- QuicRun Fusion PRO 2300KV | Lipo Cells:2-3S Lipo，6-9 Cells NiMH | BEC output: 6V/7.4V adjustable, continuous current 6A (Switch Mode)
- All-in-one design, shorter The design has been integrated and optimized to provide a cleaner and sleeker layout appearance. The overall length is now at 58mm and is 6mm shorter than the previous version. The smaller footprint provides for a spacious and an easy assembly process.
- Three operating modes Supports a variety of application needs such as the "constant speed mode (forward and reverse)", "normal mode (forward and reverse with brake)" and "normal mode without constant speed function (Forward and Reverse)"
- FOC driven, crawl worry-free The FOC mode operates smoothly at low speed. The strong torque is able to outperform the sensored power system and the consistency is better than the brushed power system. The latest generation motor is extremely silent, eliminating unwanted noises during operation and is the best choice for rock crawler.
- Applicable to All Weather & Track Conditions The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.
- Refine parameter items The ESC is equipped with 13 adjustable parameter items to meet the needs of fine-tuning adjustments. New parameters such as "maximum braking force", "speed fluency", "start mode ( Punch)", "throttle midpoint area" and other practical parameters are included.
- The FOC drive algorithm upgrade increases the efficiency by 8% and reduces the power consumption loss by 30%, resulting in a significant increase in power. The increase in temperature is lower when climbing at low speed, with a longer battery lifespan for a longer playtime
Bottomline The integrated design of the ESC and the motor greatly reduces the overall volume and weight and makes the layout and wiring of the car frame simpler and more convenient. In the FOC driving mode, low-speed torque is strong. Smooth running at extremely low speed, which is far superior to the common sensored brushless power system, even better than the brushed power. Thanks to the sine wave driving mode, the whole system has high efficiency, small heat, and effectively extends the endurance time; and the motor runs more quietly and soft. The protection grade of the whole system is IP67, with excellent waterproof and dustproof performance. Under various weather conditions, the whole system can easily deal with the complex road surface containing silt, ice and snow, and water. Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1:1 vehicle, making the control handy. Active drag brake force adjustment, providing unprecedented parking capacity on a slope. With a strong built-in switch mode BEC, the continuous current is up to 6A, and support switch between 6V and 7.4v, easy to drive various powerful steering servos and high-voltage steering servo. Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection. Supports HOBBYWING LED program box to set ESC parameters and has an independent parameter setting interface, which is integrated with an electronic switch, making setting parameters more convenient. **Please read the user manual before installation to ensure safe and proper use.**
- Product Dimensions : 2.99 x 2.99 x 2.09 inches; 9.42 ounces
- Manufacturer recommended age : 12 years and up
- Date First Available : May 31, 2022
- Manufacturer : Hobbywing Technology
