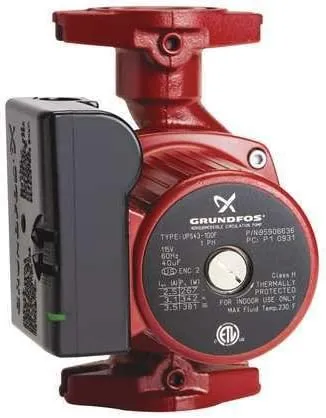

UPS 43100 F Canned Rotor Pump with a Rated Voltage of 1 X 230 and Cast Iron Construction UPS 43100 F The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump is characterized by: Ceramic shaft and radial bearings. Carbon axial bearing. Stainless steel rotor can and bearing plate. Corrosion resistant impeller, Composite, PES. Cast iron pump housing. The motor is a 1 phase motor. No additional motor protection is required. Technical: Maximum operating pressure: 145 psi Approvals on nameplate: ETL, CSA Material: Pump housing: Cast iron Pump housing: EN-GJL-200 Impeller: Composite, PES Installation: Maximum ambient temperature: 104 °F Ambient max at 176°F liquid: 176 °F Maximum operating pressure: 145 psi Flange standard: USA Oval Type of connection: C.I. Flange Pipe connection: 2 - Bolt Flange Pressure stage: 10 Port-to-port length: 8 1/2 in Liquid: Liquid temperature range: 32 .. 230 °F Electrical Data: Number of poles: 2 Power input in speed 1: 265 W Power input in speed 2: 340 W Max. power input: 375 W Rated power - P2: 0.335 HP Main frequency: 60 Hz Rated voltage: 1 x 230 V Current in speed 1: 1.4 A Current in speed 2: 1.7 A Current in speed 3: 1.9 A
