- 2 OPERATION MODES: Power transfer switch support automatic operation or manual operation, the power supply is switched in milliseconds without interruption, has compact structure, , convenient installation and maintenance, long service life, widely used in various places where continuous power failure is not allowed.
- MILLISECONDS SWITCHING: Automatic transfer switch is very useful, when the normal power supply is abnormal, the backup power supply works immediately, ensure the continuity, reliability and safety of the power supply. 2P millisecond fast switching timing controller ac110v 100a high sensitive response circuit breaker changeover.
- STABLE AND RELIABLE: This automatic switch is suitable for 50 or 60Hz AC rated 110V 100A emergency power supply system, possess stable performance and rest assured. din rail mounted power transfer switch for distribution boxes.
- AND FLAME RETARDANT MATERIAL: This automatic transfer switch is made of excellent flame retardant PC materials and silver contacts, possess good insulation, high temperature resistant, aging resistant, and reliable. Mini ats automatic transfer switch 100 amp manual transfer switch power transfer switch dual power electrical selector switches din rail mount.
- WIDE APPLICATION: Power transfer switch adopt exquisite technology, isolation and interference resistant, self investment and self compound, widely used in families, shopping malls, factories, laboratories, farms and other occasion. 2p 100a 110v dual power automatic transfer switch generator changeover switch tools dual power transfer switch din rail type.
Specification:

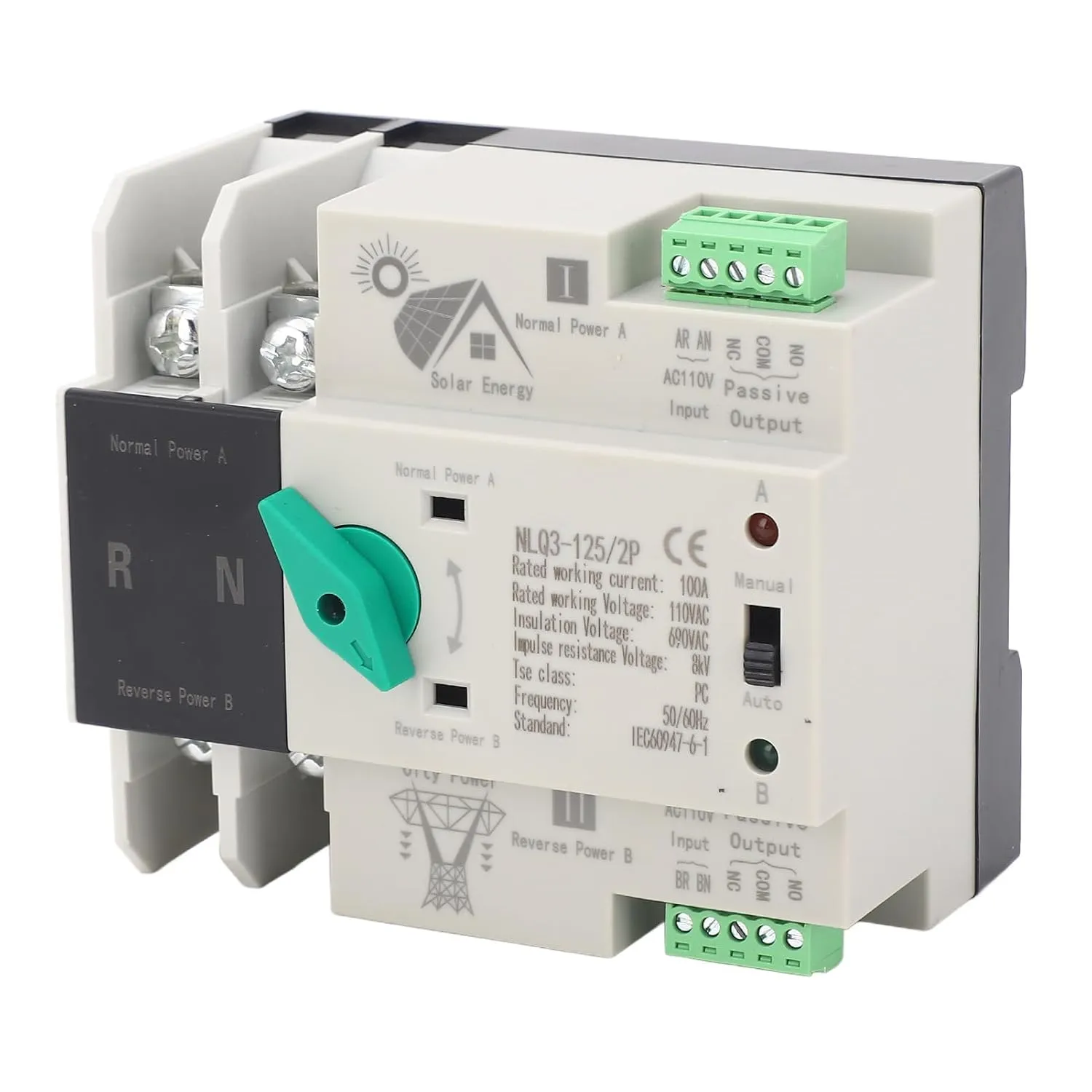

Item Type: Dual Power Automatic Transfer Switch
Product Model: NLQ3-125/2P
Material: PC flame retardant and silver alloy
Switch Type: Secondary power distribution
Rated Current: 100A
Coil Voltage: 110V AC
Insulation Voltage: AC690V AC
Rated Voltage: AC400V AC
Rated Frequency: 50Hz/60Hz
Electrical Level: PC isolation type
Rated Impulse Withstand Voltage: 8KV
Control Circuit: Rated Control Voltage Us: AC110V 85%-110% Us
Auxiliary Circuit: Two Relays, Each With Two Sets of Capacity: AC110V50HZ le=5y
Touch Time: Operation Conversion Time: Return Time: Closing Time:
Package List:
1 x Dual Power Automatic Transfer Switch
1 x User Manual
Note:
1. The maximum ambient temperature should not exceed 40℃, the minimum should not be lower than ‑5℃, and the average temperature within 24 hours should not be higher than 35℃.
2. The altitude of the installation site should not be higher than 2000meter.
3. When the maximum temperature reaches 40℃, the relative humidity of the installation site should not exceed 50%; when the temperature is the lowest temperature of ‑5℃, the relative humidity is higher, for example, if the temperature is 25℃, the relative humidity is 90%. Special measures should be taken to deal with occasional condensation on product surfaces due to temperature changes.
- Package Dimensions : 4.33 x 3.94 x 3.15 inches; 1.34 Pounds
- Date First Available : February 21, 2024
- Manufacturer : Focket
- Country of Origin : China
