- FEATURE RICH: 10-Channel SDI/HDMI switcher, supports up to 7 layers, 28-channel digital audio mixer, DVE for Transitions and Keyers, Multiview monitoring, talkback, media players, full front panel control with LCD and more.
- DESIGNED FOR MASSIVE LIVE EVENTS: Ideal for concerts, music festivals, live sports, houses of worship because you can place cameras on all areas of the stage for amazing coverage! Plus huge number of inputs and DVEs lets you build multi-layer compositions to cover the action
- INPUTS: 10 x standards converted 3G/HD/SD-SDI; 1 x Reference SDI; 2 x balanced 1/4" TRS input; 1 x 5 pin XLR talkback; 2 x RJ-45 (Control and Talkback).
- OUTPUTS: 6 x 3G-SDI; 1 x USB Type-C; 1 x 16-Way Multiview SDI.

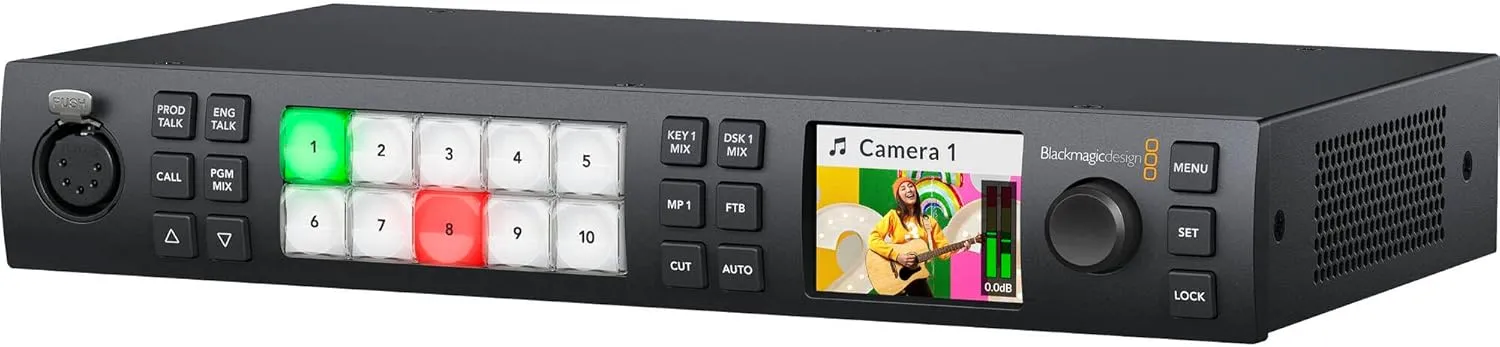

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G SDI inputs and 6 independent 3G SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, 16-way Multiview, built-in Fairlight audio mixer, and more!
ATEM Constellation HD switcher feature a compact rack mount design with a built-in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control.
