【Compatible With】

Replacement for Grundfos UPS15-58FC (UPS 15-58 FC);

Replacement Number: 59896341;

Suitable for commercial heating and air-conditioning systems and is also used for central and district heating systems.

【Package List & Specification】

Package Includes:

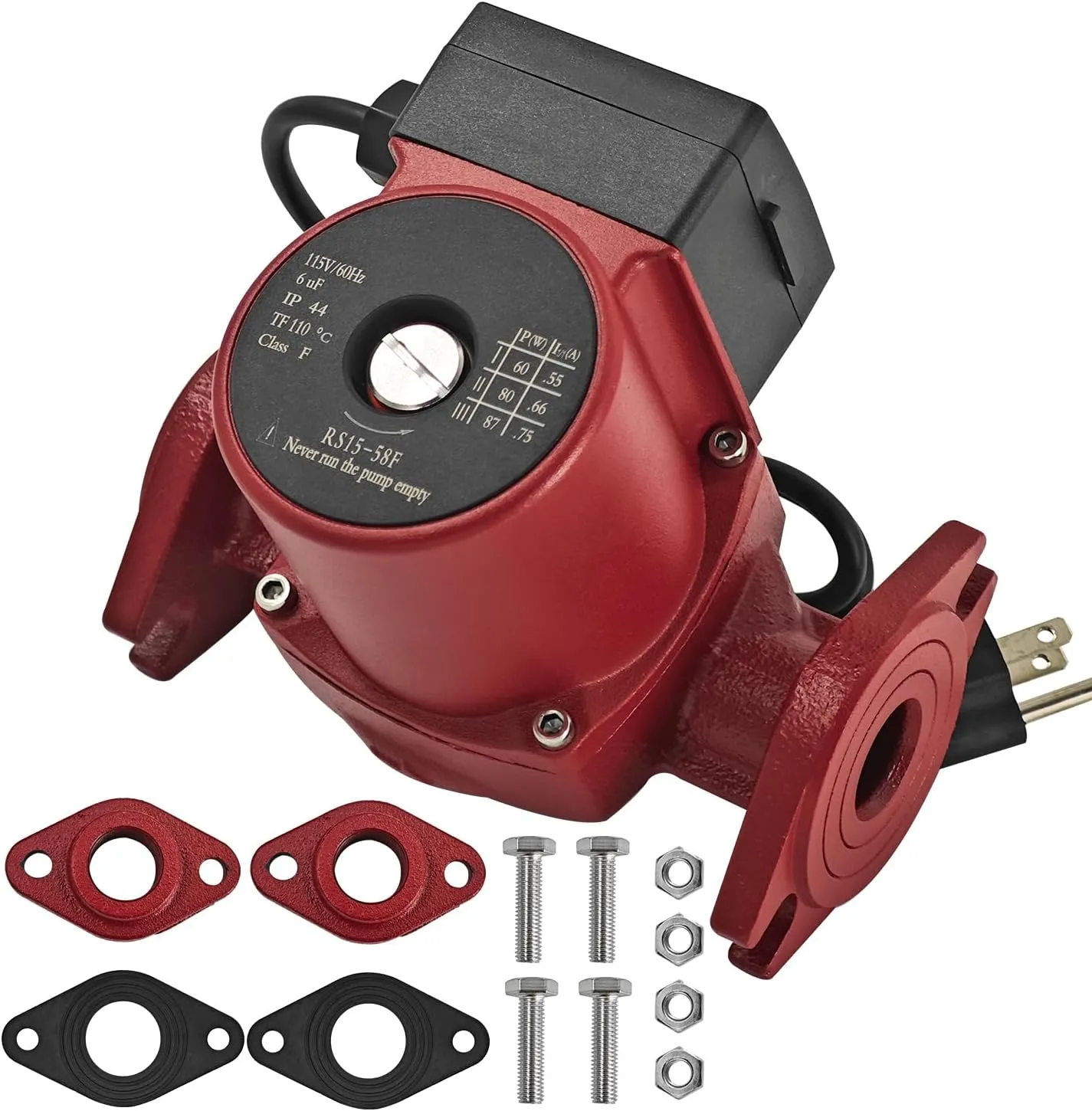

1 pcs x 115V 17GPM Three-Speed Circulator Pump;

1 set x Mounting Accessories;

Materials：

Pump housing: Cast iron (EN 1561 EN-GJL-200)；

Impeller: Composite (PES 30% GF)；

Shaft: Ceramic；

Bearing: Carbon Axial；

Technical:

Speed no: 3

Rated flow: 1.93 m³/h

Max flow: 3.9 m³/h

Flow Range: 0-17 GPM (Gallons Per Minute);

Rated head: 3.19 m

Max head: 5.9 m

Head Range: 0-19.5 ft;

Horse Power: 1/25HP

Electrical data

Phase: 1;

Rated Voltage: 115V;

Amperage at Speed 1 : 0.55A;

Amperage at Speed 2 : 0.66A;

Amperage at Speed 3 : 0.75A;

Watts at Speed 1 : 60W;

Watts at Speed 2 : 80W;

Watts at Speed 3 : 87W;

Mains frequency: 60 Hz;

Capacitor size - run: 10 µF/180 V

Number of poles: 2

Insulation class (IEC 85): F

Liquid

Pumped liquid: Water;

Liquid temperature range: 2~110 °C;

Selected liquid temperature: 60 °C

Density: 983.2 kg/m³

【Installation】

Max ambient temperature: 40 °C;

Amb. max at 80 dgr C liquid: 80 °C;

Max operating pressure: 10 bar (145 Psi);

Type of connection: 2-BOLT FLANGE (C.I. Flange);

Pipe connection: 2-BOLT FLANGE;

Pressure rating for connection: PN 10;

Port-to-port length: 166 mm;

【Excellent Performance】

Built-in motor protection for longer life and better performance.

Whisper-quiet operation for sound sensitive installations.

【Buy with Confidence】

This 115V 3-Speed Circulator Pump is factory-proven. We will be responsible for dealing with them

if the product has any quality problems within 1 year
